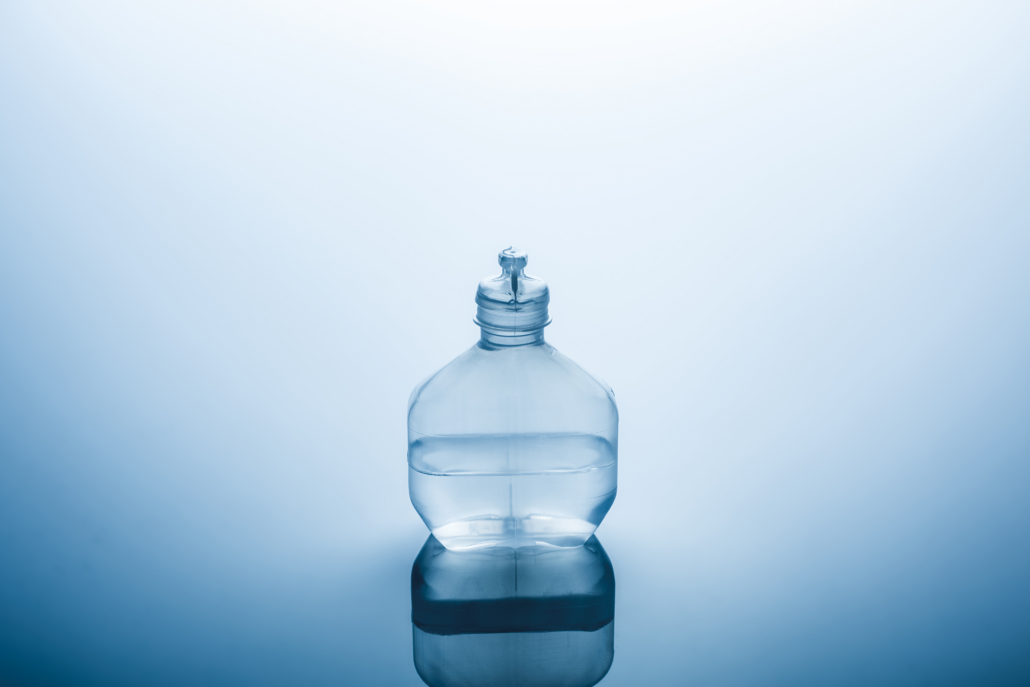

Standard range of volumes goes from 50ml to 1000ml. Bottle design can be adjusted to your requests, as our modular moulds allow a great variety of forms and closures as well as the possibility to emboss information like company logo, expiry date, batch number, etc. Different formats can be easily produced with the same mould. Larger volumes on request up to 13l.
The compact size of the machine allows for reduced clean room dimensions of only 36 sqm, where only class C or D is required. There is also the option for Ultraclean technology, which separates black and white areas of the room to decrease the dimensions requirements even further.
SYFPAC® LVP machine can reach up to 2.700 bottles per hour. Suitable for mass production, the machine can work 24/7 and grants one of the cleanest technologies for the packaging of intravenous fluids. The machine’s robust construction, together with its smart preventive maintenance program, prevents failures and unexpected expensive maintenance.
The moulds can work with either PP, PE or HDPE, with no change of parts. This wide choice of materials, available worldwide, enables to pack a wide range of formulations, with low viscosity and with temperature ranging from 4°C to 30°C. BFS bottles have an optimal resistance to terminal sterilization as well as an excellent stability of product and shelf-life. The wall thickness of the parison is easily controlled to produce container sfrom transparent to opaque, from very rigid to lightweight, and particularly self-collapsible to the extent of imitating flexible bags. Self-collapsible plastic bottles present all the advantages of flexible bags, plus they do not need an air vent during administration and are actually more cost-effective.
Euro-cap bottles are produced on SYFPAC® LVP complete line, which includes MECAS capping machines. However, Brevetti Angela’s patented Eco-head® design allows a further cost reduction wherever regulations do not require secondary capping and allow for a nipple-head bottle.
EUROCAPS
For production of Euro-capped bottles in a complete line, MECAS fully automatic system for cap assembling and sealing is available.
CUSTOM MADE MOULDS
The modular moulds are uniquely designed and manufactured at Brevetti Angela.
ECOHEAD
Wherever no secondary capping is needed, SYFPAC LVP will grant aseptic sealed bottles with no need of additional machines in line.
INERT GAS FILLING
Nitrogen or inert gas atmosphere inside the bottle can be added as an optional.
CIP & SIP
Cleaning In Place, Sterilization In Place, drying, and integrity test are performed automatically
AUTOMATIC SYSTEM
The system is fully automatic, and features a fully-fledged SCADA system. A 14 inches display features an easy-to-use interface to keep track of important data like productivity, settings and alarms.
USER FRIENDLY HMI
The machine HMI is designed to be user friendly and intuitive, while also following the requirements of CFR 21 for data integrity.
REMOTE ASSISTANCE
The machine supports remote assistance so our technicians can remotely connect whenever necessary to help you troubleshoot problems as quick as possible.
ADVANCED MAINTENANCE TRACKING
The machine automatically keeps track of the necessary maintenance based on work hours and cycles. The operator is then notified via the HMI.
We speak English, Italian, Spanish and Hindi
Want to get a quote, discuss your project or just get to know more about BFS technology? Contact us and we will be happy to help you.
